Wazuh & Wireguard logs monitoring
Wazuh & WireGuard Logs Monitoring on a Linux Host
WireGuard is an extremely simple yet fast and modern VPN that utilizes state-of-the-art cryptography. While its simplicity and performance are major advantages, one of its design choices is a minimalistic approach to logging. By default, WireGuard does not write detailed events to a dedicated log file, which can be a challenge for security monitoring.
This guide provides a practical solution for monitoring of a Linux-based WireGuard server and integration with Wazuh. We will leverage rsyslog to capture kernel-level WireGuard events and forward them to a custom log file. I have also prepared a ready-to-use set of custom Wazuh decoders and rules to parse these logs and generate meaningful security alerts.
Event Monitoring Capabilities
This integration allows you to monitor for events such as:
- 130001: Successful handshake initiations
- 130002: Invalid handshake initiations (potential attacks or misconfigurations)
- 130003: Standard keepalive packets
- 130004: Packets sent from an unallowed source IP (policy violation, potential attack)
Requirements
- A WireGuard server installed on a Linux host
- A Wazuh agent installed on the same Linux host
- rsyslog service (installed by default on most Linux distributions)
Part 1: Enabling Log Capture via rsyslog on the WireGuard Server
First, we need to instruct the rsyslog service to listen for kernel messages containing the word "wireguard" and redirect them to a dedicated log file.

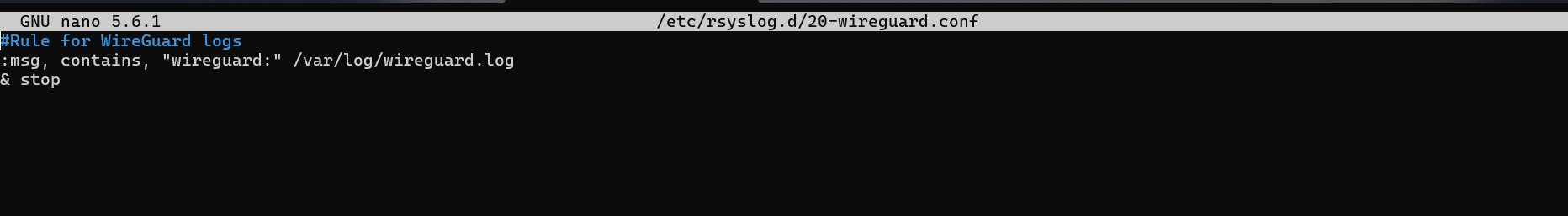

Step 1: Create a new rsyslog configuration file
sudo nano /etc/rsyslog.d/20-wireguard.conf
Step 2: Add the following rules to the file
This rule finds any message with "wireguard:", writes it to /var/log/wireguard.log, and then stops processing it further to avoid duplication.
# Rule for WireGuard logs
:msg, contains, "wireguard:" /var/log/wireguard.log
& stop
Step 3: Restart the rsyslog service
Save the file and restart the rsyslog service to apply the changes.
sudo systemctl restart rsyslog
You should now see WireGuard events appearing in /var/log/wireguard.log.

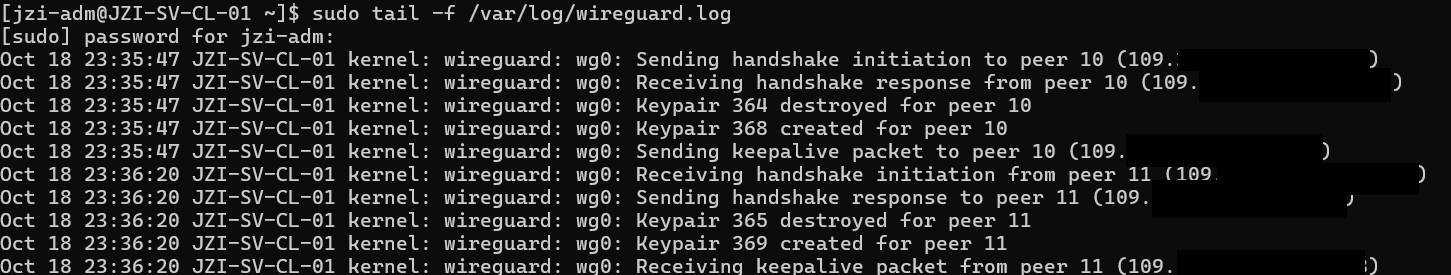

You can check events with following command:
sudo tail -f /var/log/wireguard.log
Part 2: Configuring the Wazuh Agent to Monitor the Log File
Next, we configure the Wazuh agent to read our new log file and forward the events to the Wazuh Manager. We will also add a custom prefix to each log line, which will help our custom decoders identify the logs.
Step 1: Open the Wazuh agent configuration file
sudo nano /var/ossec/etc/ossec.conf

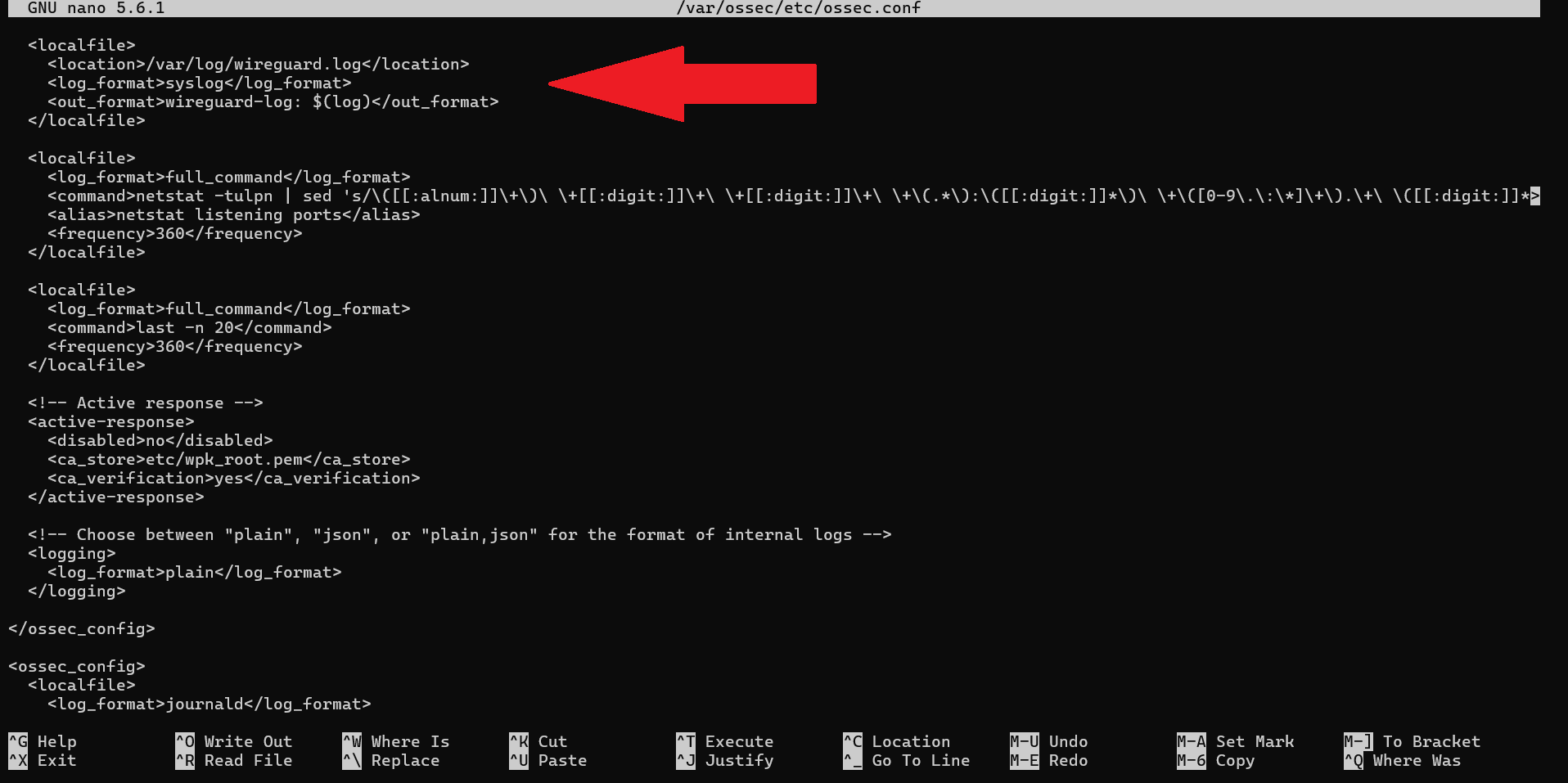

Step 2: Add the localfile block
Add the following <localfile> block within the <ossec_config> section.
<localfile>
<location>/var/log/wireguard.log</location>
<log_format>syslog</log_format>
<out_format>wireguard-log: $(log)</out_format>
</localfile>
Note: The <out_format> tag is crucial. It prepends wireguard-log: to every log entry before sending it to the manager. Our parent decoder will use this unique string to match the incoming events.
Step 3: Restart the Wazuh agent service
Save the file and restart the Wazuh agent service.
sudo systemctl restart wazuh-agent
Part 3: Importing Custom Rules and Decoders to the Wazuh Manager
Now, on your Wazuh Manager server, we will download and install the custom rule and decoder files.
Step 1: Clone the GitHub repository
Clone the GitHub repository containing the integration files.
git clone https://github.com/jayzielinski/wazuh-wireguard-integration.git
Step 2: Copy the decoder and rule files
Copy the decoder and rule files to the correct Wazuh directories.
sudo cp wazuh-wireguard-integration/130000-wireguard_decoders.xml /var/ossec/etc/decoders/
sudo cp wazuh-wireguard-integration/130000-wireguard_rules.xml /var/ossec/etc/rules/
Step 3: Set the correct ownership and permissions
Set the correct ownership and permissions for the new files. This is essential for the Wazuh manager to be able to read them.
sudo chown wazuh:wazuh /var/ossec/etc/rules/130000-wireguard_rules.xml
sudo chmod 660 /var/ossec/etc/rules/130000-wireguard_rules.xml
Step 4: Restart the Wazuh Manager service
Restart the Wazuh Manager service to load the new decoders and rules.
sudo systemctl restart wazuh-manager
Part 4: Testing the Integration
You can now test the rules by triggering specific events on a WireGuard client.
Test Case 1: Triggering Rule 130004 (Unallowed IP)
This rule detects when a legitimate peer sends traffic from an IP address that is not listed in its AllowedIPs configuration on the server.
To trigger this, I modified my WireGuard client configuration, changing the client's Address to an IP not covered by the server's AllowedIPs for that peer, and then tried to send traffic.

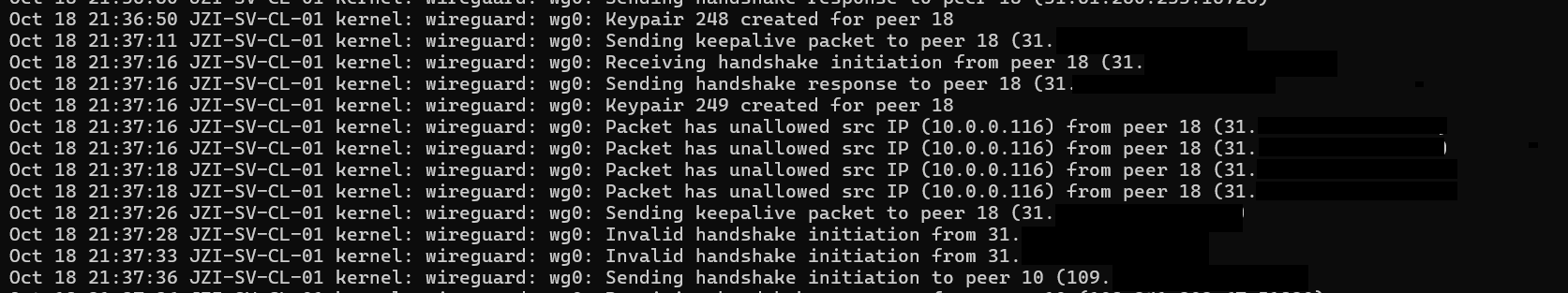

Result on WireGuard Server (/var/log/wireguard.log):
[Log entry showing unallowed IP packet]

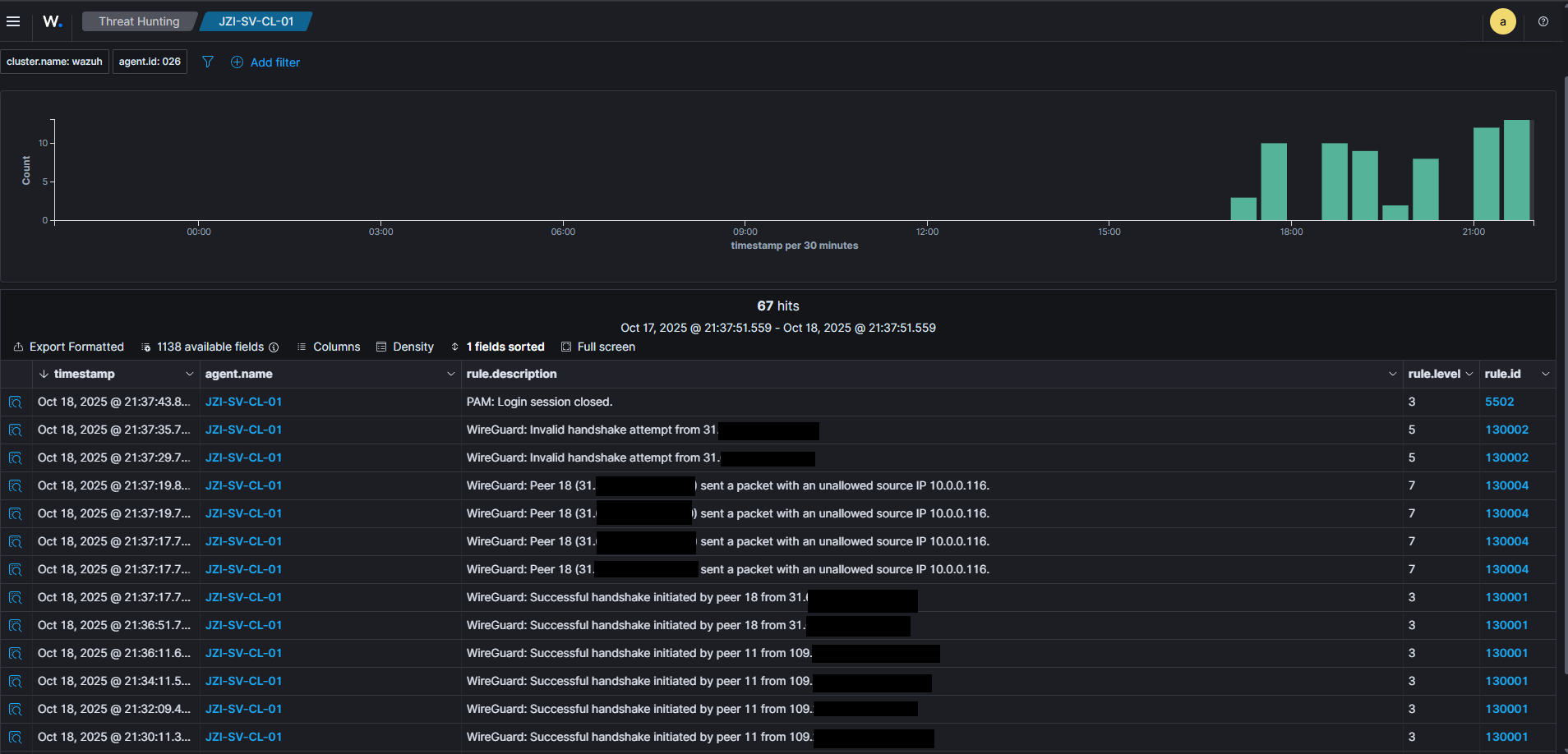

Result on Wazuh Dashboard: An alert with description WireGuard: Peer [...] sent a packet with an unallowed source IP [...] was generated.
Test Case 2: Triggering Rule 130002 (Invalid Handshake)
This rule detects a failed handshake attempt, which can occur due to a mismatched private/public key pair. This is a critical security event to monitor.
To trigger this, I changed the PrivateKey on my WireGuard client configuration to an incorrect value and attempted to connect to the server.
Result on Wazuh Dashboard: An alert with description WireGuard: Invalid handshake initiation from [...] was generated.
Conclusion
Your integration is now complete and actively monitoring your WireGuard server! This setup enables security monitoring of WireGuard VPN connections, helping you detect potential attacks, misconfigurations, and policy violations in real-time.
Repository
For the complete integration files (decoders and rules), visit: https://github.com/jayzielinski/wazuh-wireguard-integration
